How to Use Color Picker & Swatches Field

The Color Picker & Swatches field allows customers to select finishes, fabric colors, or materials through elegant, tactile visual swatches. Featuring mathematically centered active checkmarks, customizable geometries, and dynamic colorway typography, this field delivers a showroom-quality experience on any Shopify store.

Adding and Setting Up Color Swatches

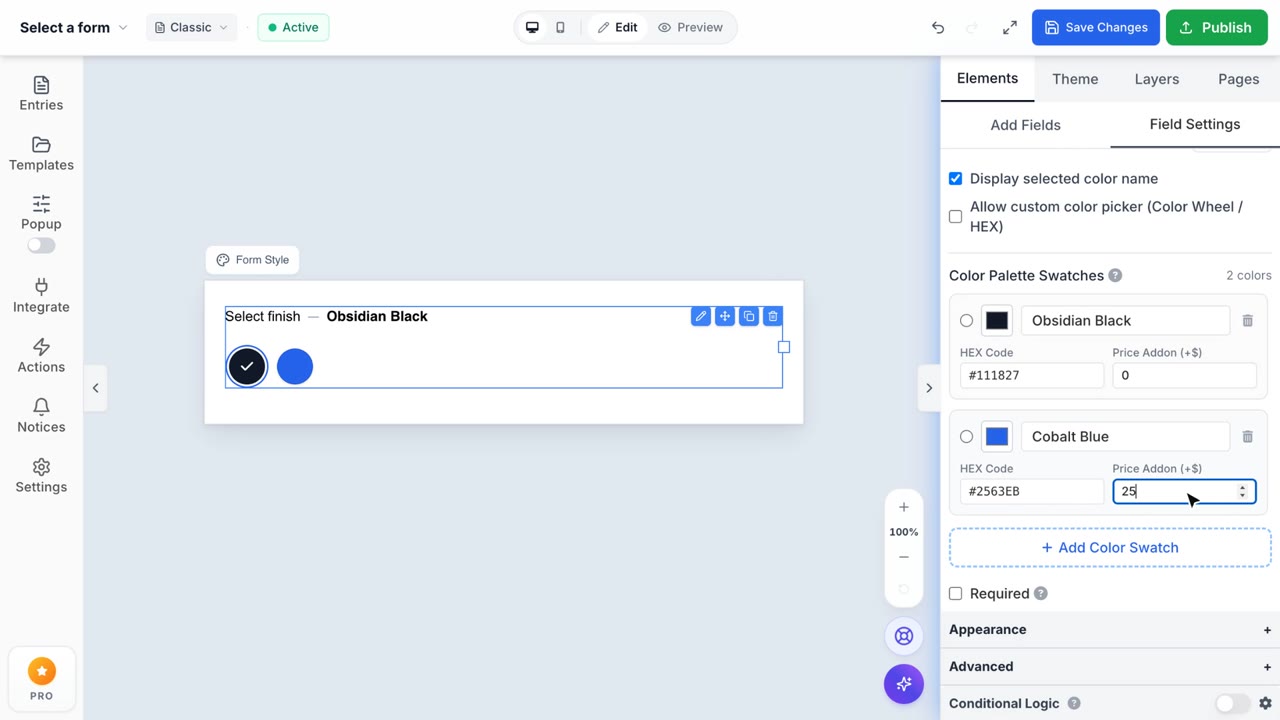

1. In the Formpify Builder, drag the Color Picker element from the Elements panel into your canvas.
2. In the right-hand settings panel, configure your color options. Click Add Color to add new swatches.
3. For each swatch:
   • Color Code: Enter any valid 6-character HEX code (e.g., #111827) or click the visual color wheel to select.
   • Color Name: Enter a customer-facing name (e.g., "Obsidian Black", "Cobalt Blue").
   • Price (Optional): Set an addon surcharge (e.g. +$25.00) that feeds live into the form total.

Styling & Geometry Controls

• Shape: Choose between classic Circle or modern Rounded Square swatches.
• Size Presets & Custom Slider: Choose from Small (24px), Medium (32px), Large (40px), or use the custom slider to set any size between 16px and 80px.
• Show Color Name: Enable this toggle to dynamically render the active color name in natural typographic flow alongside the field label (e.g., Select Finish — Obsidian Black).
• Light Color Isolation: White or pale swatches automatically include a subtle border outline so they remain distinct against pure white backgrounds.

Order & Cart Integration

When combined with the Add to Shopify Cart submit action, the chosen colorway name (and its associated addon price) automatically attaches to the cart item as a Line Item Property, ensuring clear fulfillment instructions.
